2019 new perfume type liquid filling machine price

FOB Reference Price:Get Latest Price
$325.00 - $500.00 / Set | 1 Set/Sets (Min. Order)
Power:
50w
Model Number:
YSGY water bottle filling machine
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Packaging Type:
Bottles, Cans, Stand-up Pouch, Bags, Pouch
Packaging Material:
Glass, Metal, Plastic
Type:
Filling Machine
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Henan, China
Brand Name:
Yusheng
Voltage:
220v
Application:
Beverage, Chemical, Commodity, Medical, Food, water bottle filling machine
Weight:
30kgs
Automatic Grade:
Semi-Automatic
Certification:
ISO9001, ISO9001 for water bottle filling machine
Driven Type:
Pneumatic
Dimension(L*W*H):
134*360*340mm
Applicable Industries:
Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops, Advertising Company
Name:
pneumatic pump semi automatic water bottle filling machine
Material:
304ss water bottle filling machine
Filling range:
5-5000ml 100-1000ml
Working method:
pneumatic water bottle filling machine
MOQ:
1 set water bottle filling machine
Air pressure:
0.4-0.6Mpa
Additional function:
Heating &mixing
Supply Ability
Supply Ability:
100 Set/Sets per Month Pneumatic pump semi automatic water bottle filling machine
Packaging & Delivery
Packaging Details
2019 new perfume type liquid filling machine price
Port
Shanghai Qingdao
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description

2019 new perfume type liquid filling machine price



4

  (3)

2019 new perfume type liquid filling machine price





== Product specification:

1. Semi automatic water bottle filling machine is piston measuring. It uses the compressed air as the power  to work, only a little electric power for the  indicator light. So this liquid filling machine can  work at any explosive or combustible environment by just stepping on the pedal.

  (10)



2. This water bottle filling machine does self- priming filling.Driven by the air cylinder, the piston pump liquid material  into measuring cylinder,then the piston push the liquid into to the bottle.



3.The filling capacity can be adjusted easily,by changing air cylinder measuring range.  All the semi automatic water bottle filling machine parts contacted with the liquid material is made of stainless steel.



4. Pneumatic element of the semi automatic water water filling machine is the Airtac Parts from Taiwan, the performance is stable.



5. The water bottle filling machine for small industries has single nozzle and double nozzle model



6. Liquid water bottle filling machine is widely used for the water, beverage, medicine,food field,all the material in the liquid state. It isn't suitable for the liquid with granule or air bubble.



7. As it's penumatic, so this semi automatic liquid water bottle filling machine has to match with the pneumatic equipment(air compressor).

== Technicial paramaters:

Model

YSGY water bottle filling machine

Voltage

220V 50/60Hz

Air pressure

0.4-0.6 MPa

Dimension

1100×300×400mm (20-500ml type )

Filling range

5-100ml, 10-280ml 20-500ml,100-1000ml, 500-2800ml

Filling precision

error ≤± 1%

Filling speed

0-25 bottle / min

Weight of water bottle filling machine

30KG(20-500ml type )

wearing part

Sealing ring

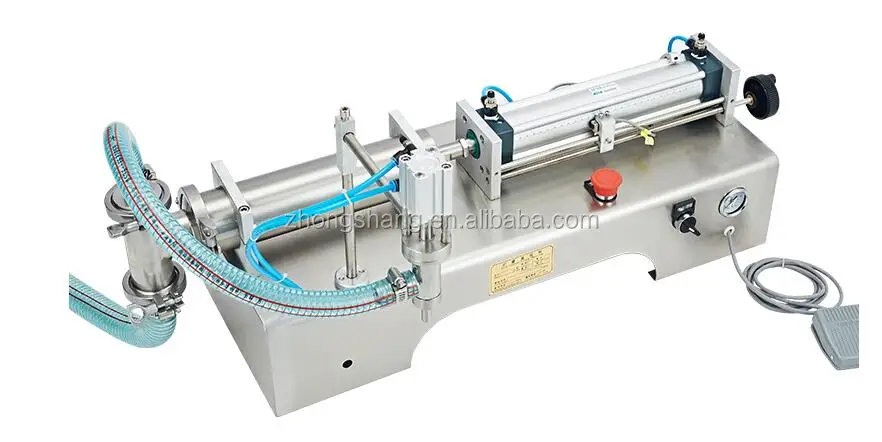

== The real picture shows of water bottle filling machine:

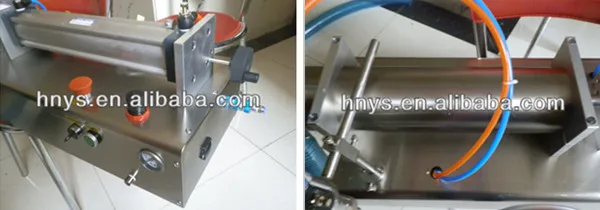

 (1)

3D drawing of water bottle filling machine:

a6.jpg_.webp_

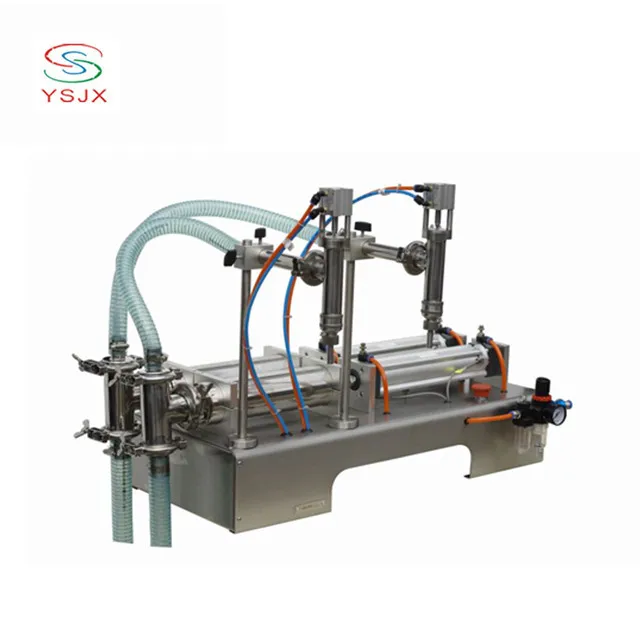

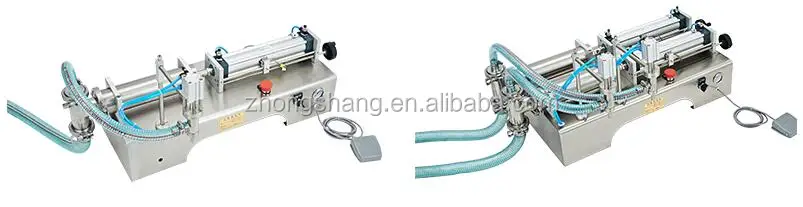

Double nozzle model semi automatic water bottle filling machine

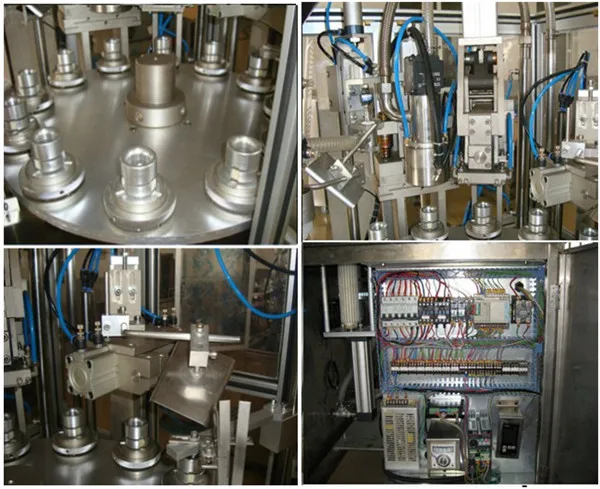

Details of the Automatic tube filling sealing machine1

Operation of water bottle filling machine

parts of liquid filling machine



Storage house of water bottle filling machine

liquid filling machine



== Filling effect of water bottle filling machine:

water





== Packing and shipping:

water bottle filling machine packed in epxort wooden case



Company Information

 111 (2)

Exhibition hall

2

Customer Visiting

customers visiting

Business card

111



And now we are looking for oversea agents,if you are interested or have any question about our Pneumatic pump semi automatic water bottle filling machine,welcome to contact us and we will always be here at your service.
