2019 small doses mosquito repel and liquid medicine filling machine for vacuum

FOB Reference Price:Get Latest Price
$1,000.00 - $2,000.00 / Set | 1 Set/Sets (Min. Order)
Power:
80W
Model Number:
YT-4
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Packaging Type:
Cartons
Packaging Material:
Wood
Type:
Filling Machine
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Place of Origin:
Henan, China
Brand Name:
Yusheng
Voltage:
220V
Application:
Beverage, Commodity, Medical, Chemical
Weight:
100kg
Automatic Grade:
Semi-Automatic
Certification:
ISO
Driven Type:
Pneumatic
Dimension(L*W*H):
660 * 470 * 1330 mm
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Retail
Key Selling Points:
High-accuracy
Product name:
mosquito repel and liquid medicine filling machine for vacuum
Filling material:
SS
Filling speed:
<50bottles/min
Filling accuracy:
±1%
Bottle height:
<250mm
Adjustable liquid level height:
15~50mm
Air pressure:
0.5~0.8MPa
machine size:
660 * 470 * 1330 mm
weight:
100kg
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Cartons for 2019 small doses mosquito repel and liquid medicine filling machine for vacuum with damp proof in wooden cases
Port
Tianjin,Shanghai,Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description

2019 small doses mosquito repel and liquid medicine filling machine for vacuum

 (10)



Product Description

Brief introduction of 2019 small doses mosquito repel and liquid medicine filling machine for vacuum

  1. Liquid vacuum filling machine is more practical and quantitative.
  2. This machine adopts pure pneumatic supply for anti-explosion.
  3. With vacuum liquid level setting system, this machine can keep the same liquid level of bottles whether the bottles are same or not.
  4. Pedal controlled filling makes this machine very easy to operate.
  5. Leak-proof vacuum adjusting organ is designed to avoid leaking while filling.
  6. This machine adapts various kiinds of bottles.
  7. This 4 heads 2019 small doses mosquito repel and liquid medicine filling machine for vacuum is suitable for filling perfume,florida water and other small dose liquid.

  (4)

Technical parameters



ModelYS-4
Filling accuracy±1%
Filling speed50bottles/min
Suitable bottle height<250mm
Suitable bottleneck dia4.5~35mm

Adjustable liquid level

15~50mm
Air pressure0.5~0.8MPa
Air exhausting rate5.5L/s
Size660*470*1330mm
Warranty1 year
Machine photos

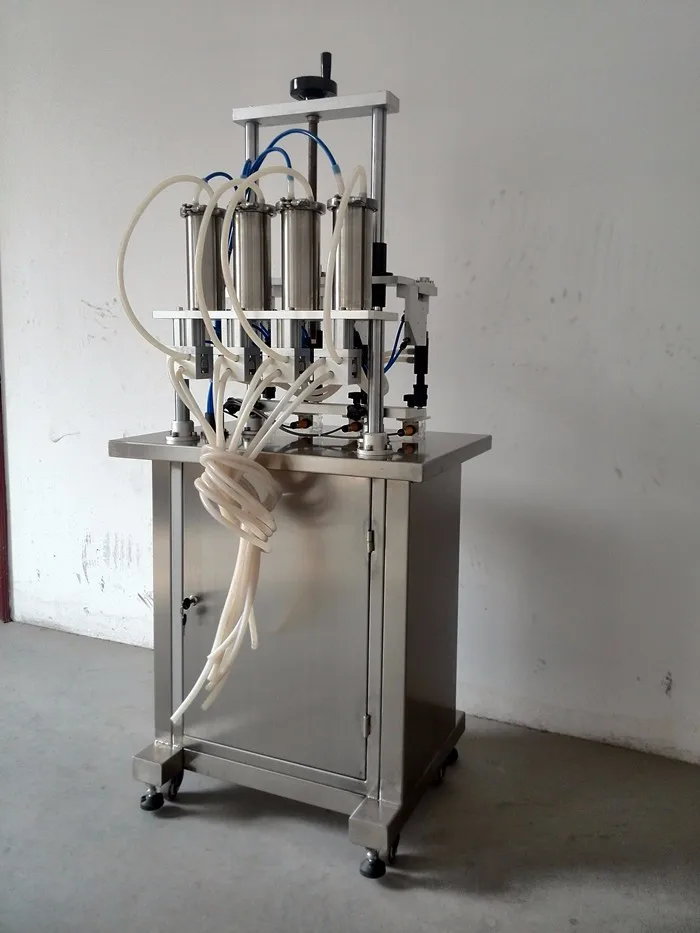

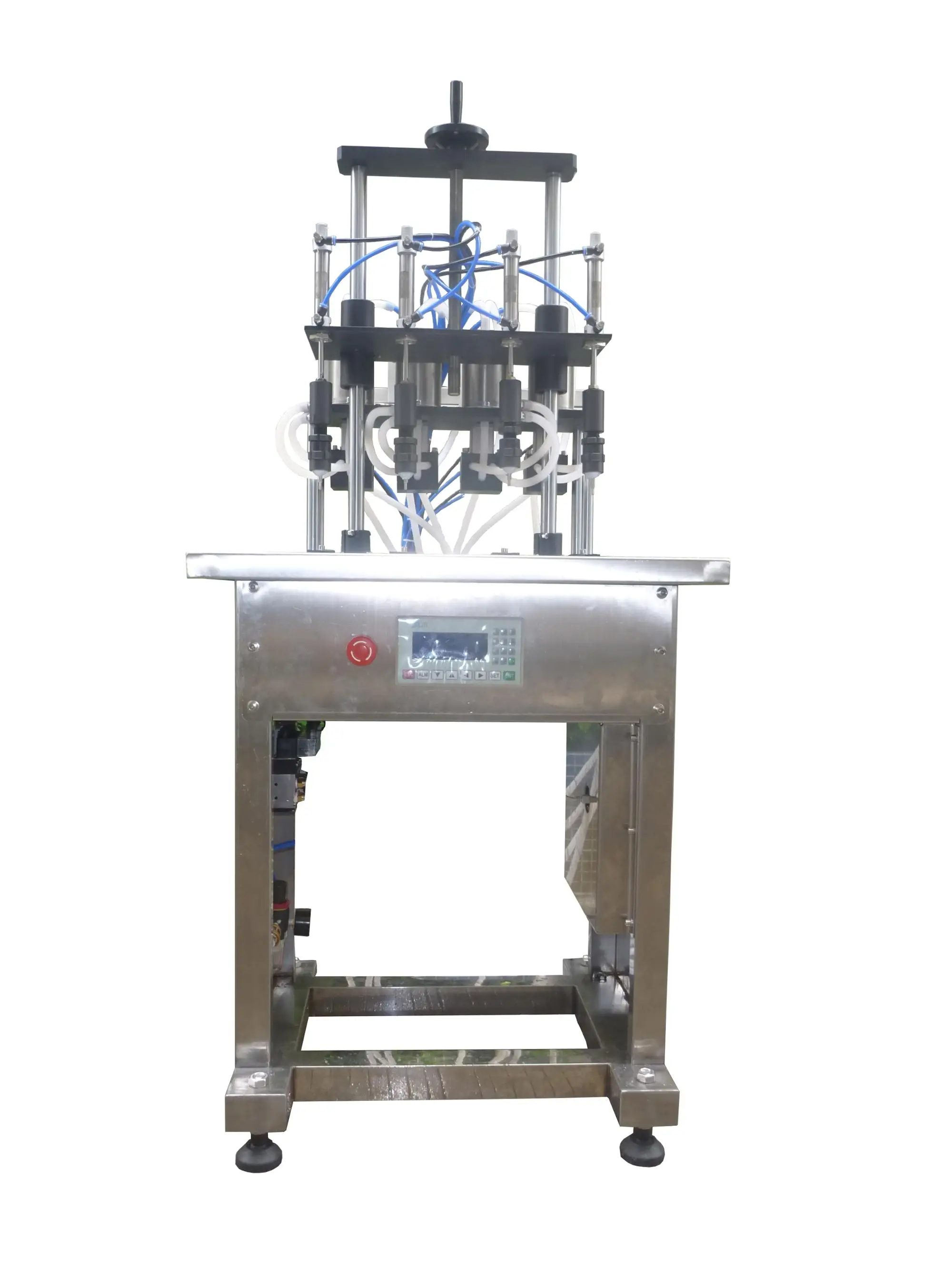

1. 2019 small doses mosquito repel and liquid medicine filling machine for vacuum

1-150H5150J9B9

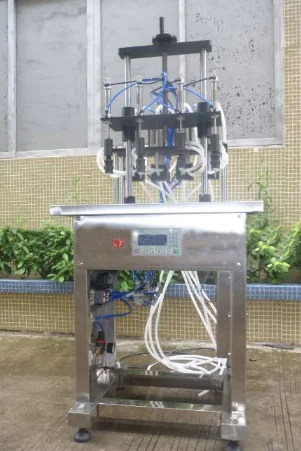

2.Factory photos of 2019 small doses mosquito repel and liquid medicine filling machine for vacuum

 (1)perfume bottle filling machinea_

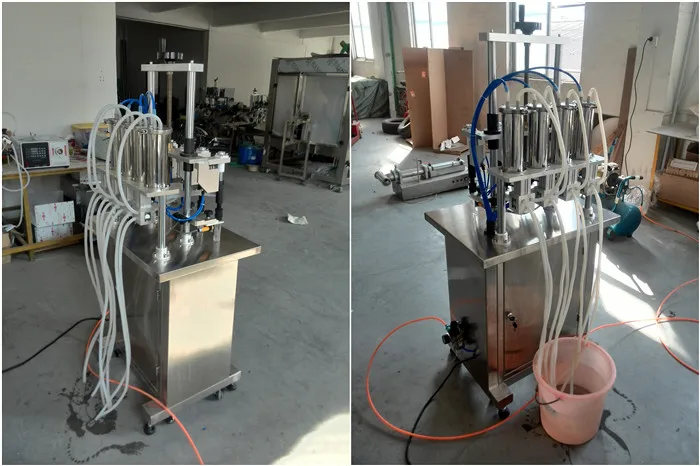

3.Working pictures of 2019 small doses mosquito repel and liquid medicine filling machine for vacuum

 (5)

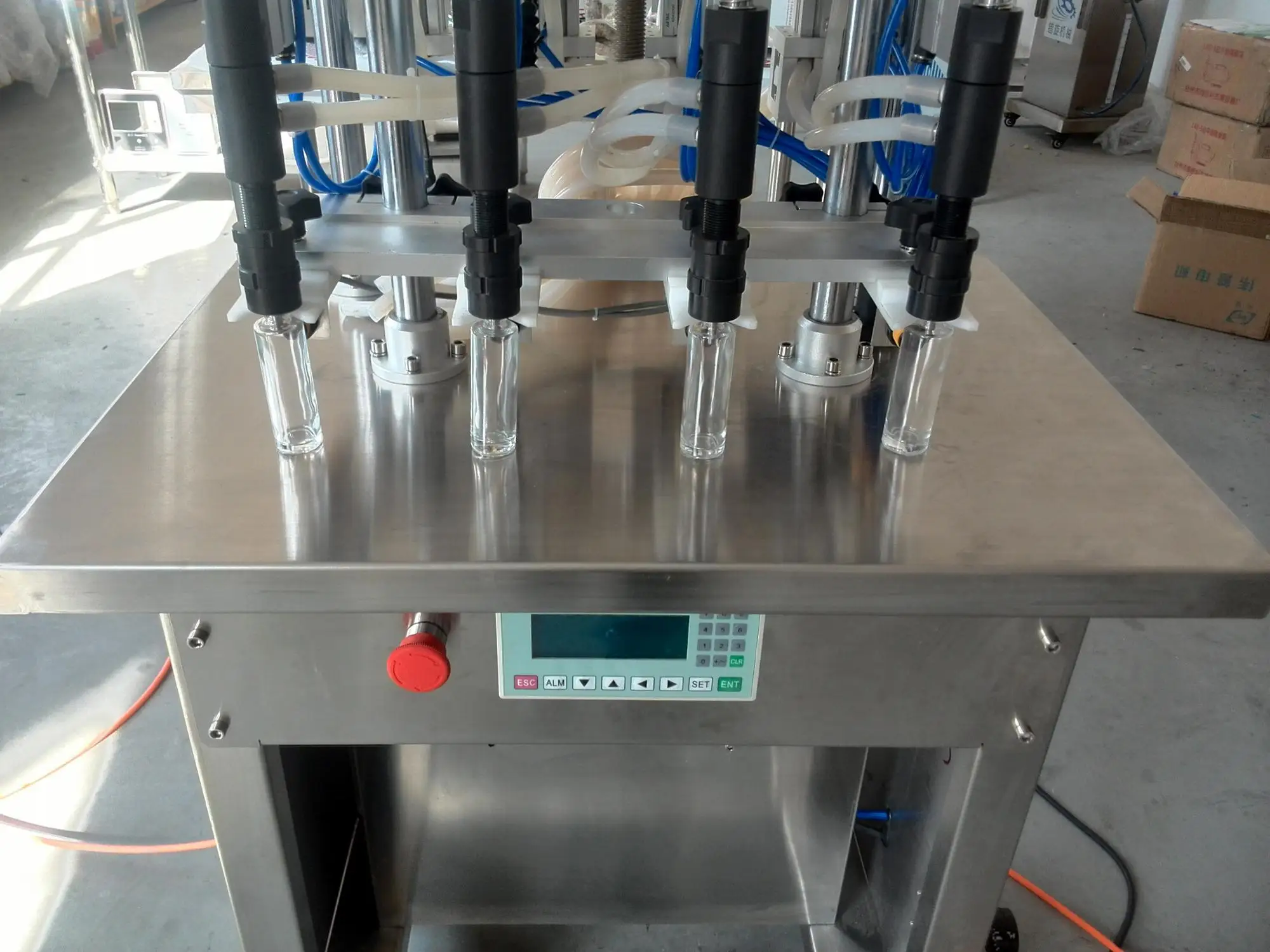

4.The nozzles of 2019 small doses mosquito repel and liquid medicine filling machine for vacuum

 (18)

5.Filling effect of 2019 small doses mosquito repel and liquid medicine filling machine for vacuum detail

2

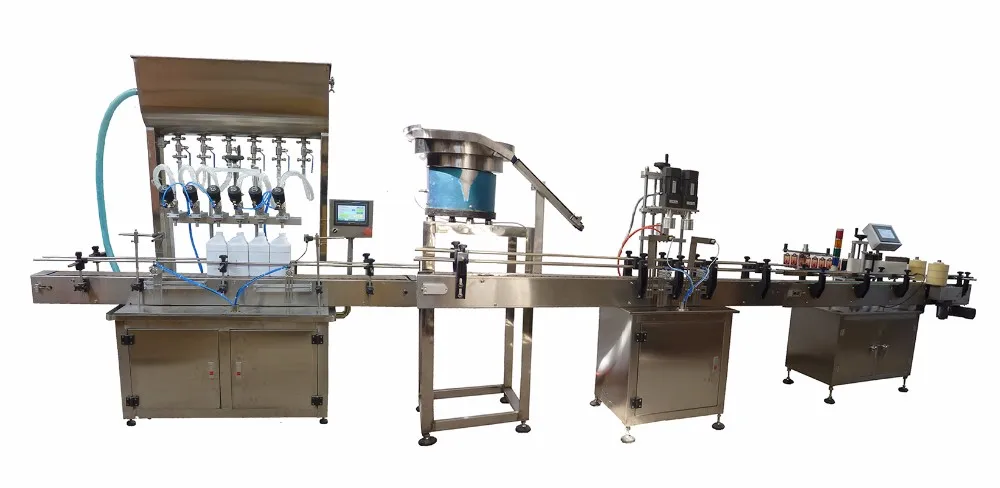

6.We also supply automatic liquild filling machine line

Packaging & Shipping

1. Before packaged& delivered, we will test the machine seriously and guarantee the machine runs stably with high accuracy.

2. After inspection, our machines are wrapped by plastic film and then carefully packed in wooden cases.

3. Air express, air freight,  sea tranportation, can be provided.
